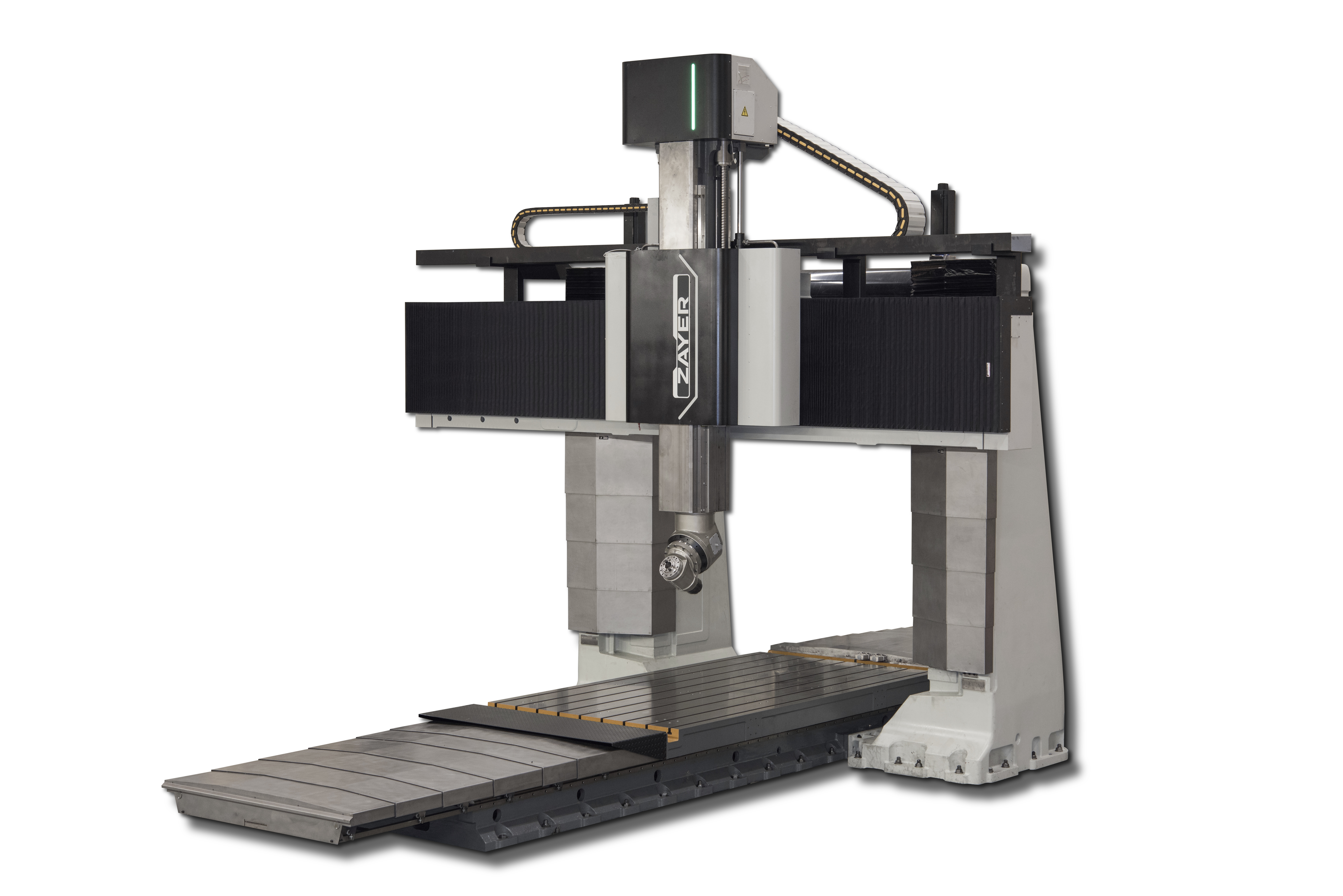

ZAYER has selected this new edition of the EMO 2015 to launch the new model TEBAS W.

A bridge type machining center with moving cross beam 1,100 – 1,350 mm (W axis) which together with the movement of the ram of 1,250 or 1,500 mm against the 600-800 mm offered by our competitors, allows us to machine parts with different heights and geometries. This allows the work controlling both axis, thus avoiding collisions of the moving cross beam with the parts to be machined thanks to the longer travel of the Z axis

Mold and dies, aerospace and general machining are the sector where the TEBAS W is targeting due to its high performance, accuracy  and capacity

ZAYER has provided this machine with a direct outlet head and with the 30º  head, positioning each 0,001º and continuous rotation. This head was awarded the “PREMIO INNOVACION” in the last BIEMH 2014.

This machine is equipped with the CNC HEIDENHAIN TNC 640 with the Interpolation Turning.



Come to visit us  – Hall 1 – Stand A32 B 33
